StoryStack: Qt-based Dialogue Creator
Personal Project | C++ & Qt  | PC | Solo| In Progress​

StoryStack is a C++/Qt dialogue tool designed to eliminate "node-spaghetti".
By utilizing a vertical system, it aims to provide designers with a clean and logical overview of complex branching narratives without the visual clutter of traditional node-based graphs.

Video Showcase

The current build uses the C++ API, saves to JSON and creates a linear based dialogue. Names can be added to a list of characters, which can then be used to create dialogue for. The red block is of type "Dialogue", which is the starting type of every conversation.

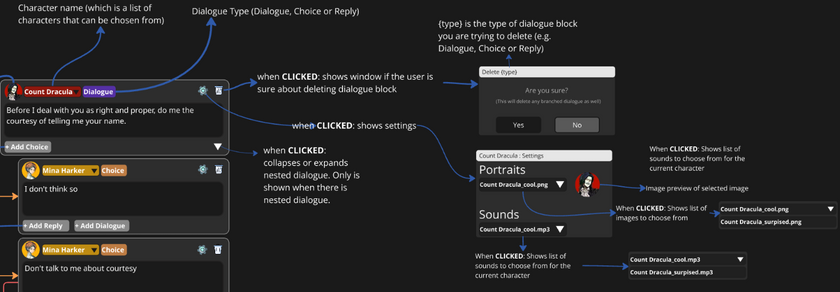

The current UX design for StoryStack's nested branching hierarchy.

A show case of the saved data: This is how the data is currently saved. Characters are global, since they can be used in multiple scenes later on. And each entry in the dialogue array has the line created, a line id for the line , and a reference to the ID of the speaker of this line (so the speaker can be easily swapped out for another, if necessary).

Dialogue order is also saved, this will be used to determine the flow of dialogue. Later if users wish to change dialogue order it will only happen in one place and the dialogue itself is not affected.

Implementation Highlights

Custom C++ API

I built the core as a standalone C++ library. I chose to use free functions rather than a object-oriented setup because I only want to manage data. It keeps the code simple. The user can create scenes, characters, dialogue , and swap lines or speakers. It also makes it easier to plug into different game engines later on.

Dialogue API header

Dialogue API source

Example of using the API to create dialogue for characters

Data Serialization & UUIDs

For StoryStack I use JSON for serialization. Its easy to parse across any engine and remains fairly human readable.
To manage the narrative logic, every entry is assigned a UUID. This ensures that I can support team collaboration (eliminating ID collision during merges, working together in a scene) and that links between dialogues never break, even when characters/scenes are renamed or dialogue order is reordered.

Design of JSON output​

  • Characters are globally stored, since they can be used in multiple scenes. And if something changes with the characters, the places where the character is referenced do not all need to be updated.


  • Dialogue: all the dialogue is stored in an array within a scene. Each dialogue entry has the id for the line, the character who speaks the line (which is a reference to the global character ID), the dialogue type and the dialogue itself.​


  • Dialogue Order: The order of dialogue is stored separate. This way the internal dialogue array doesn’t need to be changed in any way. This is useful when users would want to change the order of dialogue in the tool.

MVC Model (Model-View-Controller)

The application is separated into the Model(C++ library), the View(all the UI elements and windows in QT Creator), and the Controller(The link between the Model and the View). To communicate between the View(s) and Controller, I use signals and slots.
The MVC model allows me to write my core dialogue logic separated from the UI, which means that the library itself is usable in any game engine, or another application that is used to create UI.

The initial UML draft of the MVC model for my application. Using signals between the Views and the Controller to create dialogue, create new characters, or save the data.

Example of MVC: The Controller sits between the Qt UI and the C++ library. When the UI requests an action (saving dialogue, adding dialogue, or creating a character), the controller calls the library to handle the data, then emits a signal so the UI can update accordingly.

Changelog

Week 45 - 2025
UI:

  • Updated Dialogue Creation Window:

    • Opening the Character Creation window is now done in this window​ (instead of Dialogue Area)

    • Create dialogue blocks, by choosing a character name, the dialogue type ("Dialogue" for now only), and typing in the dialogue (Result: current application overview)

Week 42 - 2025
Design:

  • Created visual breakdown of Signal and Slot flow between Views and Controller

  • Create New UML for UI windows and elements, which includes the signal and slot flow
    ​

UI:

  • ​Added Dialogue Creation Window in QT. ( separate window for creating dialogue blocks more easily)

  • Updated Character Creation window to emit a signal when a character is created​
  • Connected UI signals/slots for dialogue creation and saving


​​

​Backend:

  • Added Controller and implement slots/signals for:

    • Saving dialogue

    • Creating dialogue

    • Creating characters

Week 40 - 2025

Design:

  • Designed UML based on MVC model on Miro


Library:

  • Created and implemented new API for C++ library

Week 38 - 2025

Library:

  • Implemented technical design in the C++ Library

    • Created static DialogueManager class

    • Added functions to add character, get character names, create scene, and create dialogue entry​

  • Implemented JSON data saving​

    • Created functionality to save scenes, dialogue, dialogue order, and characters to JSON


UI:

  • Used C++ functions in QT Creator

    • Add Dialogue button also creates a dialogue entry in data

    • Creating a new name in the Character Creation Window, also creates said character in data

  • Add Character button in Dialogue Area opens the Character Creation window


Design:

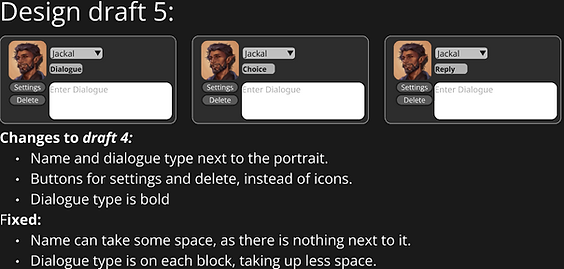

  • Updated design for the dialogue blocks and the User UI flow of the application​

Week 37 - 2025

Design:

  • Planned out technical design for the JSON data and C++ Library on Miro


Library:​

Week 36 - 2025
Design:

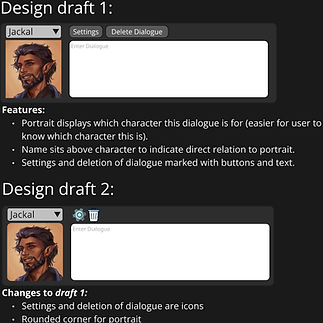

  • Created initial dialogue design in Miro


UI:​

  • Created the Dialogue Area window:

    • ​Added Add Dialogue button for inserting a new dialogue container to a scrollable list

    • Added ​Add Character button to open the Character Creation window

    • Will be the central window for dialogue

  • Created the Dialogue Container UI element:

    • Added dropdown (will later display character list)

    • Added text field (will later be used to capture dialogue)

    • Will be used for displaying dialogue

  • Created the Character Creation window

    • Added text field (will later be used to create new character names)​

    • Added Confirm and Cancel buttons

    • Will be used for creating new character names
